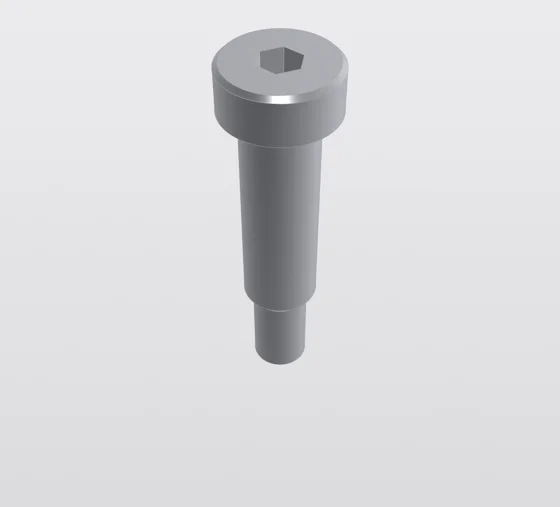

Custom shoulder bolts render
DIMENSIONS · live preview
Shoulder diaShoulder lengthThread

Tolerance & finish

  • Standard: ±.005 in. unless your print says otherwise.
  • Tighter (to ±.0005) on request; tight work is quoted by hand.
  • Finishes: as-machined, deburred, anodize, black oxide, zinc, heat treat (outsourced, noted on quote).
  • Bar-fed up to about 2-1/4 in. OD. Bigger runs from cut blanks; over 12 in. long or out of range, Roy reviews it.

Pins & shafts

Custom shoulder bolts

Custom shoulder (stripper) bolts in odd sizes and materials. Used on: ag, conveyors.

We run it on: Haas SL-20 lathe, threads single-pointed; hex or slots on the VF-1 · LEAD TIME: typically 3–4 weeks

1. Sizes
2. Material
3. Quantity & specs

Set up for 5 / 10 / 25 runs; we can quote 1–2 too.

Estimates only, not an offer. Final price comes in a written KMW quote after review; quotes are good for 30 days. Print or photo optional on the next step.
